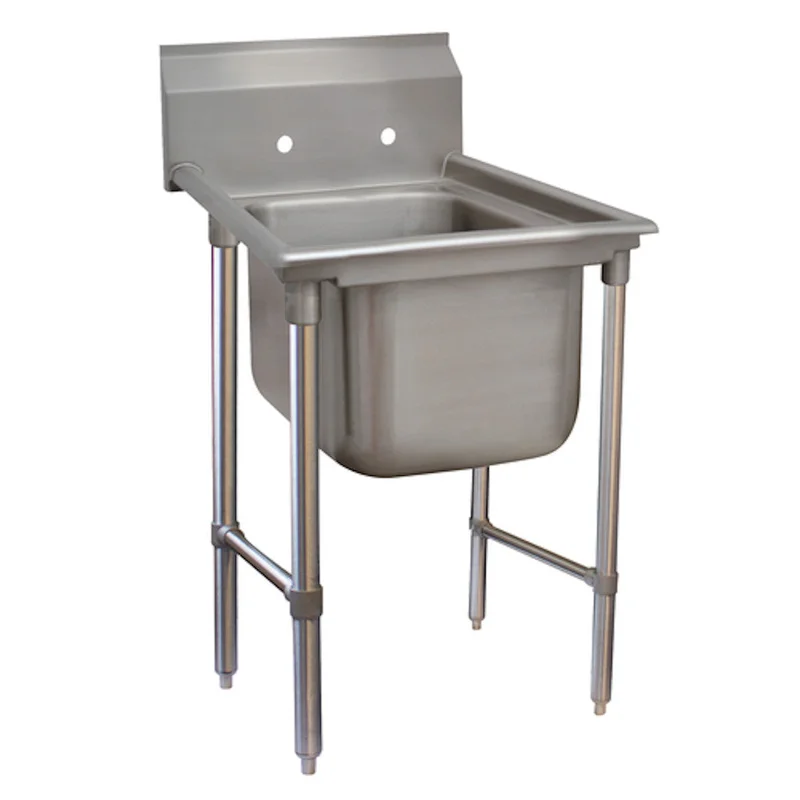

Advance Tabco T9-1-24 16″ Regaline 1-Compartment Sink

Description

The Advance Tabco T9-1-24 features a tile edge for ease of installation.The sink has one piece deep drawn sink bowls with integral drainboards with splash, and all sinks have a large liberal 3″ radius.The placement of the welded leg assembly ensures stability and furnishes direct support of the column load requirement for the entire sink unit

Features and Benefits:

• Tile edge for ease of installation.
• One piece Deep Drawn sink bowls with integral drainboards with splash.
• Featuring the single bowl unit design.
• All sink bowls have a large liberal 3” radius.
• “T-9” Series is supplied with adjustable side cross braces featuring leg clamps.
• All TIG welded.
• Welded areas blended to match adjacent surfaces and to a satin finish.
• Gussets welded to a die-embossed reinforcing channel.
• Supply is 1/2” IPS hot & cold.
• Faucet holes on 8” centers.
• Faucets are not included.
• Waste drains are 1 1/2” IPS S/S basket type, located in center of sink bowl, and are included.
• 1 5/8” diameter galvanized legs and gussets.
• 1” adjustable plastic bullet feet.
• Bowls are heavy gauge stainless steel type 304 series.
• Drainboards, splash and rolled rims are fabricated using heavy gauge stainless steel type 304 series *(If included, see configuration for details)*.

Specifications:

• Configuration: Regaline Sink, No Drainboard
• Faucet Type: No Faucet (Faucet Holes on 8″ Centers)
• Compartments: 1
• Bowl Dimensions: 20″ x 16″ x 12″
