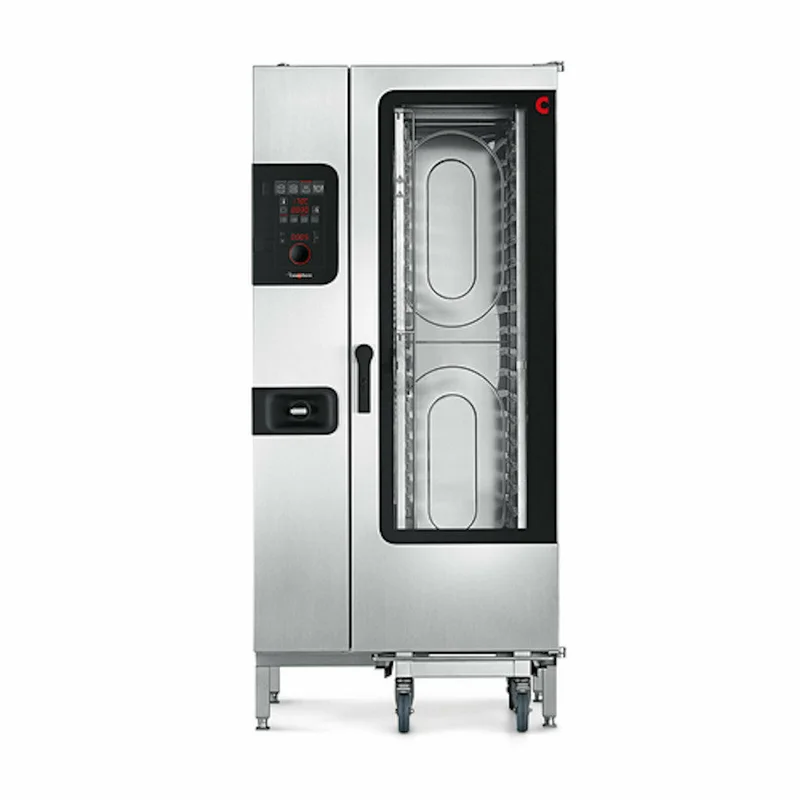

Convotherm C4 ED 20.10EB Half Roll-In Electric Combi Oven with Easy Dial Controls

Description

The Convotherm 4 Easy Dial 20.10 sets new standards in manual operation. All settings and extra functions can be selected and adjusted in one operating level and are visible at all times. A USB port is integrated into the control panel, allowing for easy data transfer to or from the oven. The combi oven features an Electric Boiler. Steam is generated by a high performance boiler outside of the cooking chamber.

The C4 ED 20.10EB has 3 Advanced Closed System + (ACS+) operating modes – Steam, Combi-Steam, and Hot Air and 5 extra functions – Crisp&Tasty, BakePro, HumidityPro, and Controllable Fan. The oven is easy to keep clean and maintain with the semi-automatic cleaning system and HygienicCare. The TriColor indicator ring indicates the oven’s current operating status.

The C4 ED 20.10EB features a right-hinged door with a safety latch. The roll-in combi oven comes with 1 loading trolley.

Features and Benefits:

• ACS+ (Advanced Closed System +) operating modes:
• Steam (86-266°F) with guaranteed steam saturation
• Combi-steam (86-482°F) with automatic humidity adjustment
• Hot air (86-482°F) with optimized heat transfer
• HygienicCare – food safety provided by antibacterial surfaces:
• easyDial control panel
• Door handle and recoil hand shower
• easyDial user interface:
  • Convotherm Dial (C-Dial) central control unit
  • Digital display
  • Retherming function – retherm products to peak quality
  • 99 cooking profiles each containing up to 9 steps
• Multi-point core temperature probe
• Door handle with safety latch
• Integral preheat bridge
• Data storage for HACCP and pasteurization figures
• Preheat and Cool down function
• One (1) loading trolley
• Stainless steel construction

Specifications:

• Dimension: 45.9″ W x 84.7″ H x 38.2″ D
• Unit has 20 slide rails; rail spacing 2.68″ max
• Capacity: (20) half-size sheet pans or (20) 12″ x 20″ x 1″ hotel pans
• Electrical:
• 208/240/60/3
• 31.3 / 41.6 kW
• 87.1 / 100.1 amps
• Commercial Warranty: 12-month parts and labor warranty and second 12-month parts only
