Description

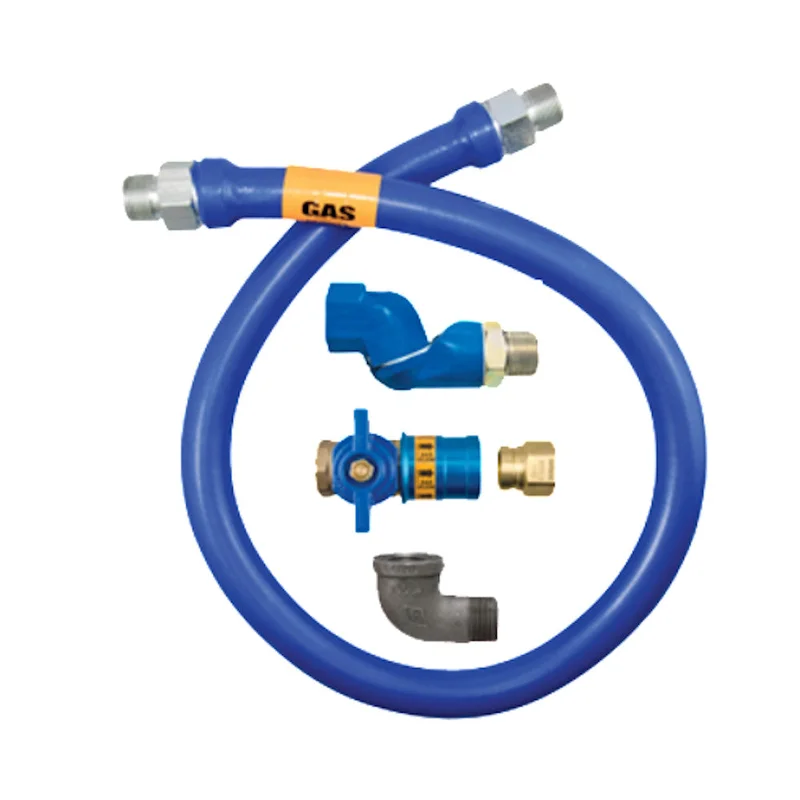

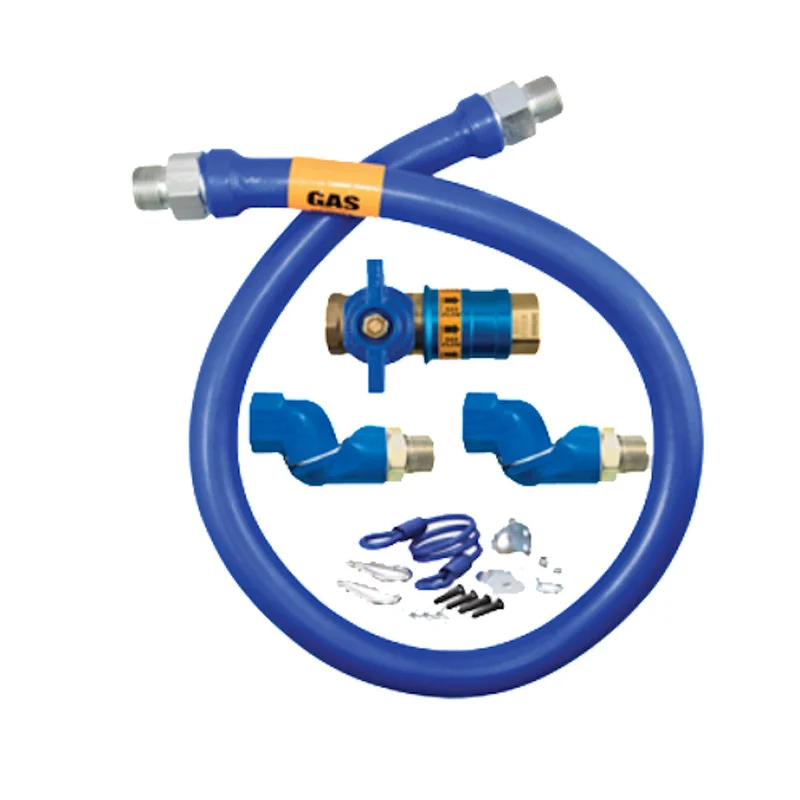

Double Swivel MAX/Safety Quik Quick-Disconnect Valve Assemblies combine flexible movement and one-handed Quick-Disconnect functionality with a unique safety shut-off. By preventing users from accidentally turning on the gas while the appliance is not connected to the supply line, the Double Swivel MAX/Safety Quik Assemblies protect your employees and your business. 360° movement of Swivel MAX at both ends of the assemblies allows appliances to safely be positioned closer to the wall – increasing your kitchen aisle space and prolonging the life of your connectors.
SWIVELMAX:.
Multi-plane Fitting: Aluminum body, brass threaded end fittings
Movement: 360° multi-plane spherical rotation
Safety Quick® Quick-Disconnect Valve:
Quick-Disconnect: Brass body, carbon steel threaded end fittings, and aluminum collar
Protection Valve: Full port brass ball valve
Thermal Shut-off: Polymer insert in QD melts when internal temperatures exceed 350° F to shut off gas flow.
THE DORMONT BLUE HOSE:
Tubing: Annealed, 304 stainless steel (ASTM A240)
Braiding: Multi-strand, 304 stainless steel wire
Coating: Antimicrobial (patent #6,742,815) PVC, melts at 350°F, coating will not hold a flame; blue color indicates braided connector
End Fittings: Carbon steel; zinc and yellow dichromate coating
Stress Guard: 360°rotation of end fittings at both ends before and after installation (patent pending)
