Description

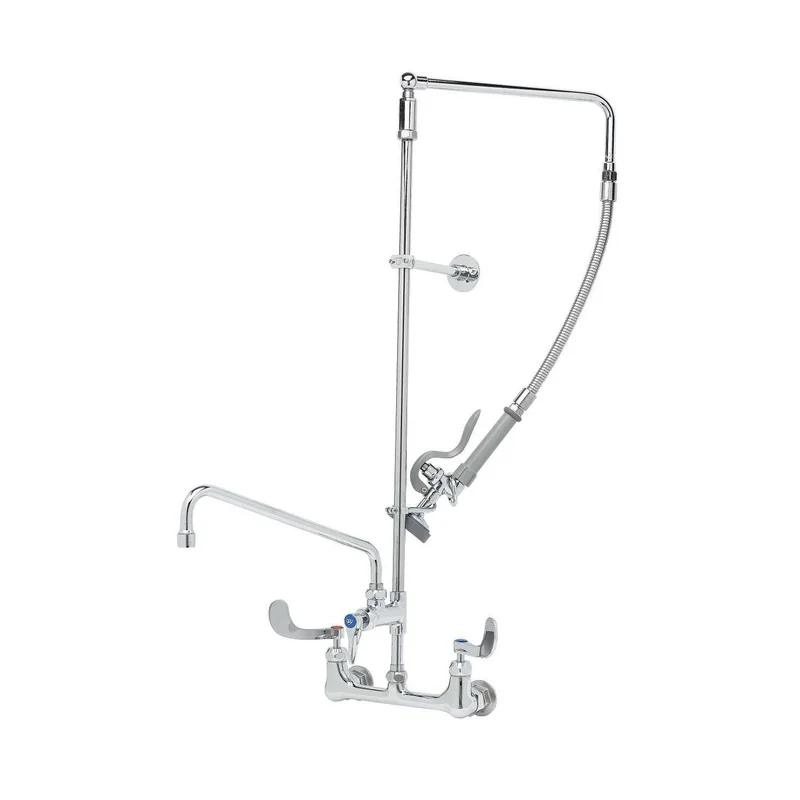

The T&S Brass B-0133 EasyInstall pre-rinse spring action wall mount faucet is a commercial mixing faucet built for dishwashing stations, pot scrubbing sinks, and prep areas in restaurants, cafeterias, and institutional kitchens. It ships as a complete assembly and is designed to speed up installation without compromising durability or water efficiency.
- Commercial wall-mounted pre-rinse faucet assembly suited for single or double compartment sink stations requiring high-volume rinsing in foodservice environments.
- Polished chrome-plated brass body, riser, and spray valve body with a 44″ flexible stainless steel hose and chrome-plated metal lever handles with color-coded hot/cold indexes.
- 8″ faucet centers with adjustable range from 7-3/4″ to 8-1/4″, overall unit height approximately 33-3/8″ including the 18″ EasyInstall riser; hose reaches 44″ for sink coverage.
- Connects via 1/2″ NPT female eccentric inlets with 2″ flanges; compatible with standard commercial wall-mount plumbing and designed for straightforward retrofit or new installation.
- Quarter-turn Eterna compression cartridges with spring checks prevent hot/cold water cross-flow; overhead spring returns hose to upright position; heat-resistant gray spray handle rated for hot water contact; operating range 40-140°F, 20-125 PSI.
- Spray valve delivers 1.15 GPM flow rate; unit is 2019 DOE PRSV Class II compliant; carries a 3-year limited manufacturer warranty.
- Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372.
Dimensions: Approximately 33-3/8″ H x 12-5/8″ W; 8″ faucet centers (adjustable 7-3/4″ to 8-1/4″); 44″ hose; 18″ riser
