Description

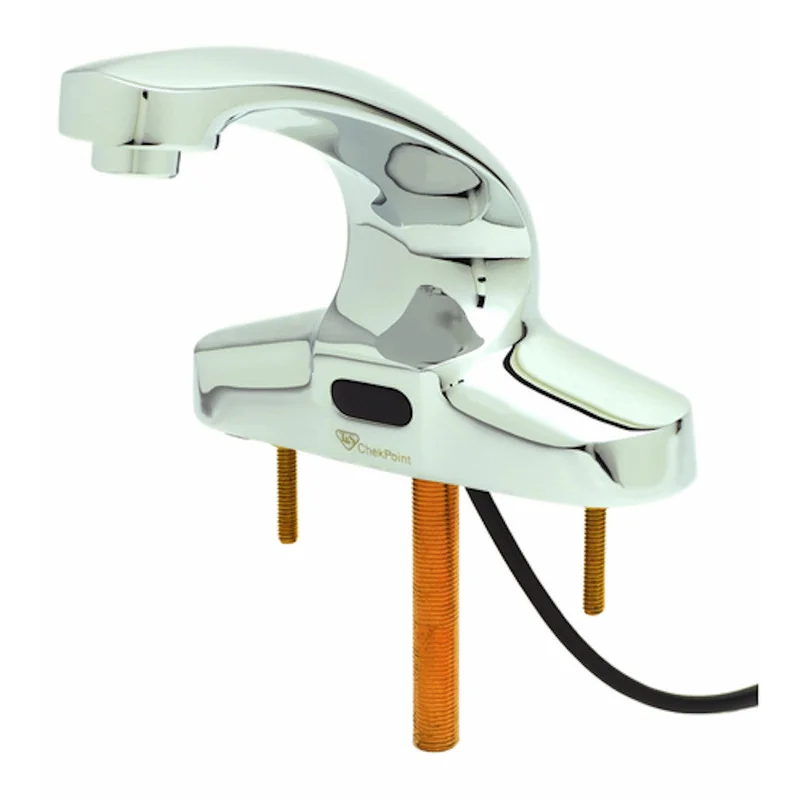

Being electronic activated, this T&S Brass EC-3103-VF05 is ideal for handwashing stations and commercial restrooms or rest areas. It has a solid cast brass spout, polished and chrome plated for increased durability and an attractive appearance. It has a 0.5 GPM VR spray device and a removable strainer. It has a 2″ deep, water resistant control box that can be AC or DC operated. The control box uses four AA batteries and is operated with internal flow control switches. This EC-3103-VF05 has a temperature mixing valve with integral check valves.
Features and Benefits:
- 4″ Center Set
- 100-240 VAC adapter
- Solid Cast Brass Spout
- Polish Chrome Plated Finish
- 0.5 GPM [8.3L/min] VR Spray Device with Key
- 3-5/8″ x 4-3/16″ x 2″ Deep Water Resistant Control Module Box (Blue)
- Internal Flow Control Setting Switches
- AC or DC Operated
- (4) AA Batteries
- Hardwire Capable Using Terminals on Back
- 24″ [610 mm] Sensor Cable
- Removable Strainer
- 1/2″ NPSM x 1/4″ NPSM 18″ [457 mm] Long Flexible Stainless Steel Hose
- Temperature Mixing Valve with Integral Check Valves
- 100-240 VAC Adapter with 144″ [3658 mm] Long Double Power Cord
- (Remove Rubber Plugs on Module and Cable to Connect)
- (2) 3/8″ Compression x 1/2″ NPSM 18″ [457 mm] Flexible Stainless Steel Supply Hose
Specifications:
- Model: EC-3103-VF05
- Approximate Weight: 8.6 lbs.
